This dialog allows you to set the communication parameters between Softree and the Laser Gun.
Port Settings
For Laser Technology's TruPulse series the recommended settings are:
- 4800 baud
- 8 data bits
- no parity
- 1 stop bit
- Xon/Xoff
For other models and brands, check the manufacturer's recomendations.
Trouble Shooting Checklist
1) When you connect to the Laser Gun via Blue Tooth, you should choose the Outgoing COM Port (see Blue Connection Below)
2) Make sure the Blue Tooth is and activated by clicking the shot button on the Laser Gun.
3) Make sure the Laser Gun port is not open by other software.
4) Consult the manufacturer's manual for additional configuration and setup information.
Blue Tooth Setup
If you are communicating with the Laser using a Blue Tooth connection, you will need to first Pair the Laser Gun device with a Blue Tooth Connection. The proceedure to do this in Windows 10 is as follows:
Windows 10
1. Ensure the laser gun is powered up. In Windows tap the Bluetooth icon (usually this icon is available in the lower left corner of the screen).

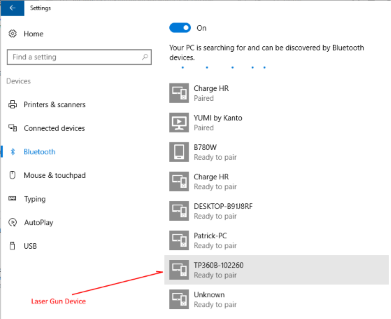

2. Click on Show Blue Tooth Devices. A list of options appears. Windows should find the laser gun and it should appear in the list. Click on the list item to establish a Generic Serial connection. You may need to enter a password provided by your Laser manufacturer.

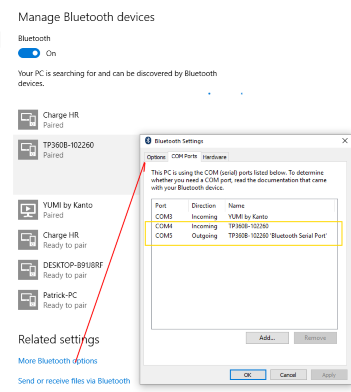

3. Once a connection has been established, determine the COM port assignment by selecting More Blue Tooth Options . The Serial Port tab shows Inbound and Outbound COM port numbers.
