Section Extrapolate Ground Options
Note: This dialog is available from a button on the Alignment Setup Dialog.

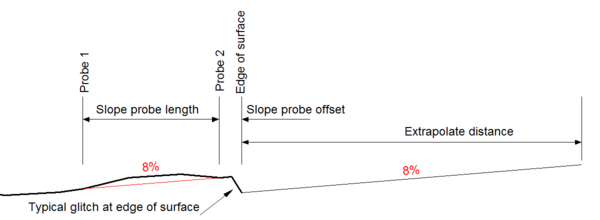

Extrapolate distance (edit box)
Distance to extend the ground beyond the edge of the Terrain.
Slope probe length (edit box)
Distance used to extract a slope from the Terrain surface.
Slope probe offset (edit box)
Distance from the edge of the surface to the outside probe point.
