Construction Zone parameters can be used to determine costs and constraints spatially. If multiple zones are overlapping, only the parameters from one of them will be used.
Zone Types
Default
The Default parameters are applied to areas which are not associated with any other zone.
No-Go Polygon Zones
No-Go Polygon Zones are polygons which should be excluded from all construction.
No-Go Zone
No-Go Polyline Zones are polylines which should not be crossed during construction.

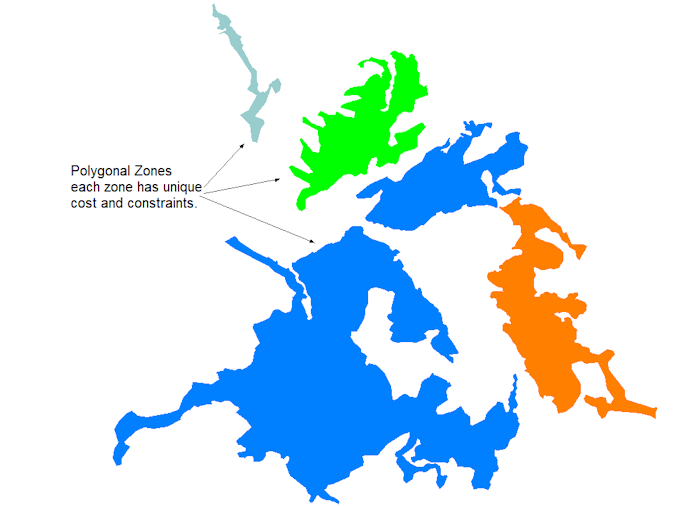

Polygon Zone
Polygon Zones are a collection of polygons which share a common set of costs or constraints.

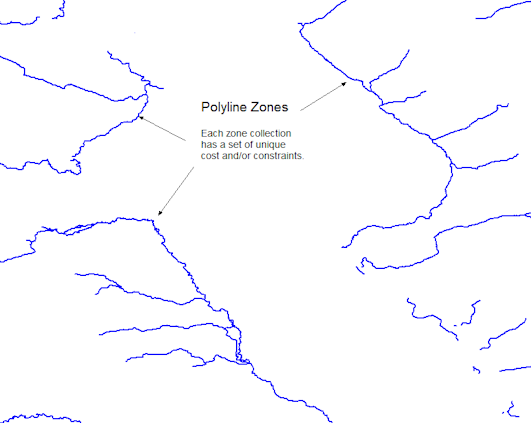

Polyline Zone
Polyline Zones are a collection of polylines which share a common set of costs or constraints.
Surface Zone - Z
Surface Zones Z are defined by a range of Z-values extracted from a TIN surface.
Surface Zone - Grade
Grade Surface Zones are defined as a range of grade values extracted from a TIN surface.
