  • 2.455. Import Traverse Options Dialog
  (c) Company name, 2021
Import Traverse Options dialog
This dialog box is accessed through the Options button of the Import Setup dialog, when item Import Softree Traverse Document is selected. When traverse files are being imported using File - Open and File - Insert, there are two additional tabs in this dialog: Projection Transformation and Rotate/Translate/Scale.
See also Importing Traverse and Map Data.
NOTE: This dialog also appears when importing HP48 - QTRAN Data.
Feature Name
Enter the name of the feature (Alphanumeric ID). If this field is left blank the feature will be assigned the file name. If side shots are included (see below) they will automatically be given the same Alphanumeric ID and a unique Numeric ID. For instance, if the name is TRAV then the centerline will be TRAV-0 and sideshots will be TRAV-1, TRAV-2 ...
Include Side Shots
If selected, side shots will be included.
Final Slope Horizontal Distance
The last shot in a series of side shots is always open ended (infinite). Entering a horizontal distance here sets the offset from the previous shot for this last shot.

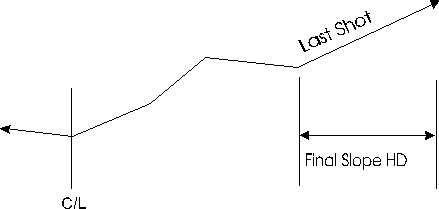

    Figure 1. Final Slope Horizontal Distance
