Fore Right Column
The Fore Right measures the forsite from the previous station to the next station. This angle can be measured (-180,180) or (0,360). See Traverse Entry Options dialog for more information on angle formats.
The initial backshot can be set in from the Survey Information dialog.
NOTE: Left turns can be entered as negative right turns.
To enter Fore Right the Angle Reference must be set to Turning Angles (see the Horizontal Angle box in the Advanced Mode Options dialog).  Other entry modes will change the column heading and the interpretation of the data entered.

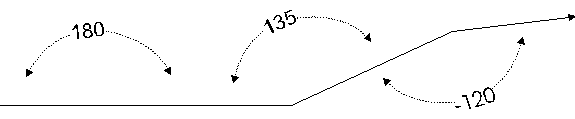

    Figure 1. Fore Right with Angle Range (-180,180)

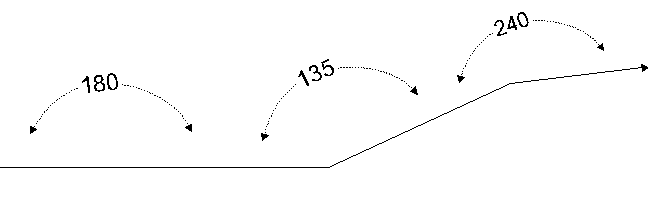

    Figure 2. Fore Right with Angle Range (0,360)
For more information about columns, see Traverse Window Columns.
