Note: This dialog is available by clicking on the Features button from the Alignment tab in the Location Setup dialog or the Alignment Properties area in the main ribbon bar.

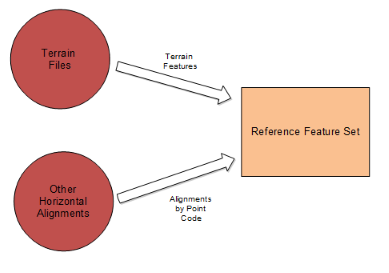

Reference features are terrain features (points, poly-lines etc) or other alignments. They can be displayed (projected or intersected) in the Profile, Plan and Section windows or used for template control.

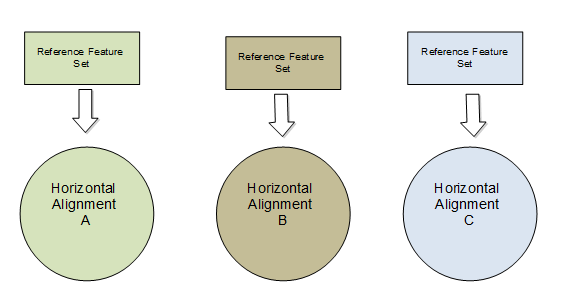

Reference feature sets are associated with a specific horizontal alignment.
The list box at the top of the dialog box contains a set of predefined reference feature placeholders e.g. Reference Feature 1, Reference Feature 2...
Each of these can be assigned to a terrain feature in a Reference Terrain.
Definition tab
To create a new reference feature
1) Select the Definition tab.
2) Select an available position (Reference Feature 1, Reference Feature 2 ... etc.) in the list box.
3) Check Use as reference feature.
4) Select the Reference Terrain containing the desired feature from the combo box. Reference terrains are defined in the Reference Surface dialog available by pressing the adjacent "+" button.
5) Click on the Browse button in the Feature Name group and select the desired feature. The feature Name will be displayed and you may type an optional Description.
Profile and Section tabs
Projection (check box)
If checked, the projection of the feature (a polyline) will be displayed in the Section or Profile windows.
Intersection (check box)
If checked, the intersection of the feature (a point) will be displayed in the Section or Profile windows.
Options button
Allows you to select the line and point formatting (color, line type, symbol) as well as the maximum projection offset distance and whether feature name labels should be displayed.
