Additional Terrain files can be displayed in the background. To add or remove Terrain files use menu View - Background this will activate the Background Display Files dialog.
Background files are "read only" they can not be changed (edited). To modify a background file you must read it in as the current Terrain. Background files will generally display faster in the background than they will in the foreground.

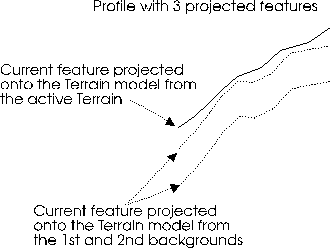

Profile Display of the Current Feature on a Background Terrain
The projection of the current feature on one or more background Terrain model(s) is displayed in the Profile Window if the following conditions are met:
The projection of the current feature on the current Terrain is assumed to be topography and the top down order of the sub surface stratum is defined by their order in the Background Display Files dialog. See Background Terrain for more information.
