Layer Intersections and Percent Calculations

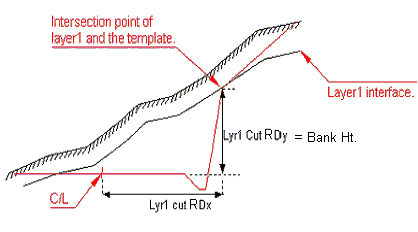

It is possible to calculate and report the intersection points with the template and the sub-stratum layers. The figure below shows the offsets for Layer 1.
Layer 1 Intersection Offsets

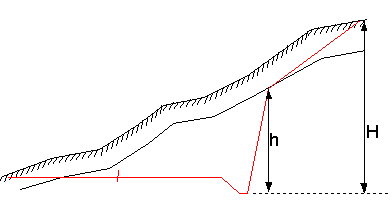

Lyr2 R Ht. % = (h2 / H2)* 100
Layer 2 Percent by Height Calculation
